Features:

- Manufacturer: AMASS

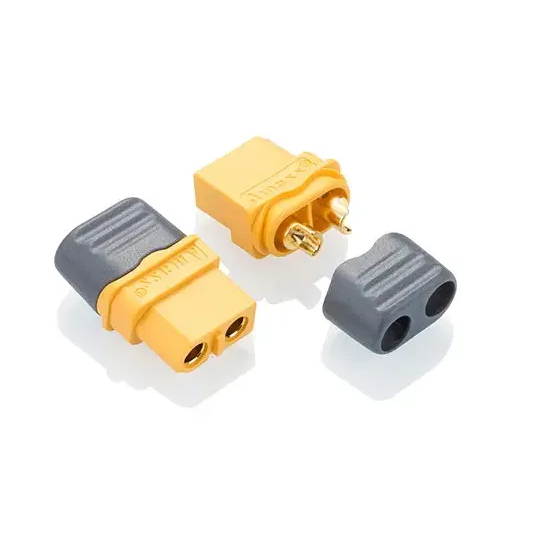

- Model: XT60H-F2.G.Y

- Fields of application: Lithium batteries

- Group: XT60

- Insulator color: Yellow

- Nominal current: 30 A

- Peak current: 60 A

- Limit voltage: 500 V (direct current)

- Recommended wire gauge: 12 AWG

- Installation: Wired

- Number of main (power) lines: 2

- Number of auxiliary (signal) lines: 0

- Conductor material: Gold-plated brass

- Insulator material: Polyamide

- Contact resistance (no more): 0.5 mΩ

- Fire resistance class: UL94-V0

- Additional options: Cover for the contact group

- Working temperature: -20 - 120 °C

- Nominal number of reconnections, no more than: 1000 times

- Weight: 3.43 g
